Wine Fermentation Cold Storage in Australia

(1) Cold storage size: 4.5m on length , width 2.7m, and the height is 2.6 m (2) Required room temperature: keep 4 barrels x 200 L of wine, need the temperature between 5 and 12 degree for around 4 months (3) Power supply and refrigerant: 240V-1phase-50HZ; R404a (4) Temperature in summer is around 24 degree and on winter 18 degree

Blast Freezer for Cooling Fruit Juices in Guatemala

(1) Cold storages size: 7 mt x 2.5mt ( w x l ), Qty=2nos (2) Required temperature: evaporative temperature is -34.5 degrees Celsius (3) Power supply and refrigerant: 460V-3phase-60HZ; R404a (4) Ambient temperature: 37.8 degree centigrade  (5) Storage: quantity of barrels:  54 ( 55 gals each )

14 Tons Tuna Meat Cold Storage in Peru

(1) Cold storages size: 6.5 mt x 6.5mt x 2.5 mts  ( w x l x h), (2) Required temperature: 2 degrees Celsius (3) Power supply and refrigerant: 440V-3phase-60HZ; R404a (4) Ambient temperature: 27 degree centigrade, max is30 degree centigrade (5) Storage: 14 tons tuna meat from 25°C to2°C.

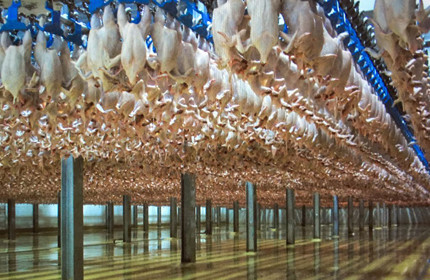

Refrigeration Solutions For Peru Customer

Required cooling air for chicken meat cold chain inside cold room. Customer required cold room temperature keep 0~5℃, cold room size (L*W*H) 8*3.7*3 meters, there will be 2300 chickens entering into the cold room by chains, and will leave 20 minutes later, with chicken weight 2.4 kg per each, chicken temp. 38℃, and decreased to 20℃ when leaving the cold room.

Mangoes Cold Storage in Guatemala

Mangoes cold storage information: (1) Cold storages size: Internal dimensions 5.40 mt x 11.70 mt x 03 mts ( w x l x h ), 2 rooms;

Cooling Tunnel for Paste in United Arab Emirates

(1) Chamber: 6 x 2.5 x 2.25 m (2) Temperature: initial 60 degree centigrade, final required 30 degree centigrade (3) On the conveyer 750kg take 10min from in and out. (4) Ambient temperature: in summer 45C in winter 20C (5) Power supply and refrigerant: 380V-3phase-50HZ; R404a

Fish Blast Freezers Cold Storage In India

(1) Chamber: 12.5 x 5.5 x 3.5 m (2) Temperature: initial 30 degree centigrade, final required-22 degree centigrade (3) Required time: 3~5 hours (4) Ambient temperature: 28~33 degree centigrade (5) Power supply and refrigerant: 380V-3phase-50HZ; R404a (6) Storage: 5 Tones fish

3600 MT Potatoes Cod Storage in Nepal

(1) Cold storages size: 30m(L) x 22 m(W),3 chambers (2) Required room temperature: Initial pull down of temp from 30 Deg C to 15 Deg C is considered with in1 to 2 days. And subsequently cooling down to 4 Deg C in next 10 to 15 days in each chamber. (3) Power supply and refrigerant: 380V-3phase-50HZ; R404a (4) Ambient temperature: 43 degree centigrade (5) Storage: 3600 MT of Potatoes

Freezing chicken cold storage in Maldives

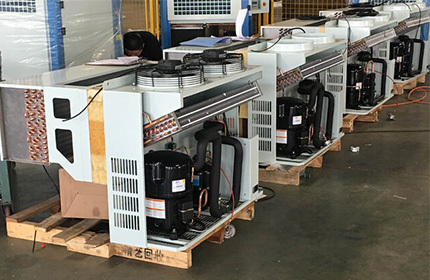

-Air cooled condensing unit with Copeland compressor: 2 units ESSA-08NKTGY (ZFI36KQE) - Ceiling Mounted Typical Type cold room evaporator: 2 units EST-11.6KS - Thermal expansion valve, condensing unit controller - Accessories for machine installation: refrigerant, refrigerant oil, copper pipe, copper elbow, copper connection, copper tee, U type copper tube, check valve, insulation pipe, etc

Meat cold storage and freezer storage in Romania

(1) 6 Cold storages size: 15mx5.2mx7.4m (H) (2) 2 freeze storages size: 12mx5.2mx7.4m (H) (3) 3 small cold rooms 3mx3mx2.4m (h), and 2 cold rooms 4mx3mxh2.4m(h) (4) Required temperature: cold storage 1 degree centigrade; freezer storage -22degree centigrade

106 KW Glycol Chiller for Milk Industry in New Zealand

a. To cool 5000 to 6000 liters of milk per hour b. Milk in put temp 22 degrees ,out would be about 4 to 5 degrees c. With heat recovery 30% d. Ambient temperature 35 degrees e. Power supply:415V-3Ph-50hz

Vegetables and Meat Cold Storage in Mongolia

Cold storage size: 50 cubic meters Cold room inside temperature: aver. Temperature is -5 - 10C Cold room surrounding temperature: 10-35C Storage: vegetables and meat
