Bizter Comp. Condensing Unit & Evaporator for Cooling Tunnel in Algeria

Project Information:

(1) Need compressor condensing unit and evaporator for the tunnel;

(2) Required temperature can reach -40 degrees Celsius

(3) Power supply and refrigerant: 400V-3phase-50HZ; R404a

(4) Required cooling capacity: 22.5 kW at Temp. evaporation -40 ° C

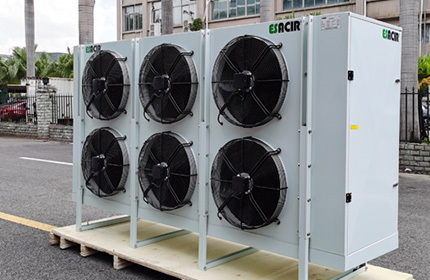

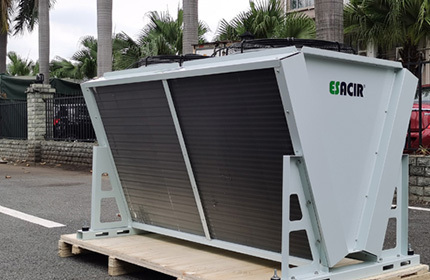

-Bitzer 2-satge comp. condensing unit (air cooled):1 unit ESBA-30NXOBY; including split V type condenser.

-Cold room evaporator:vertical blast freezing type 1 unit EST-290XVE6

-Thermal expansion valves and controller.
