Fan Coil Units For Croatia Client

Project details:

Croatia client company is in the field of shipbuilding and need fan coil units for their new office building, to equip with their heat pump, client wants Modbus function for all fan coils, and group control for cassette ceiling fan coils, all fan coils require air filter, and water drainage, room temperature for cooling mode 27℃, water flow/return for cooling mode 7/12℃; room temperature for heating mode 20℃, water flow/return for heating mode 45/40℃:

(1)Floor/ceiling fan coil, 2 pipe system, cooling capacity 4.23/3.5/3.04KW, two way ON/OFF valve,

quantity 3 pcs

(2)Wall mounted fan coil, 2 pipe system, cooling capacity 1.9/2.65/3.2KW, three way ON/OFF valve,

quantity 52 pcs

(3)Wall mounted fan coil, 2 pipe system, cooling capacity 3.16/4.41/5.2KW, three way ON/OFF valve,

quantity 6 pcs

(4)Cassette ceiling fan coil, 2 pipe system, 4 way air outlet, cooling capacity 4.33/3.34/2.1KW,three way ON/OFF valve, quantity 54 pcs

(5)Cassette ceiling fan coil, 2 pipe system, 4 way air outlet, cooling capacity 6.15/4.91/4.21KW, three way ON/OFF valve, quantity 7 pcs

Solution:

(1)Floor/ceiling fan coil, 2 pipe system, cooling capacity 4.23/3.5/3.04KW,

Model: EST500CF2, ceiling floor fan coil, cooling capacity 4.5KW, with infrared remote controller

(2)Wall mounted fan coil, 2 pipe system, cooling capacity 1.9/2.65/3.2KW,

Model: EST400VE2, universal exposed floor standing fan coil, cooling capacity 3.6KW, with digital controller

(3)Wall mounted fan coil, 2 pipe system, cooling capacity 3.16/4.41/5.2KW,

Model: EST600VE2, universal exposed floor standing fan coil, cooling capacity 5.4KW, with digital controller

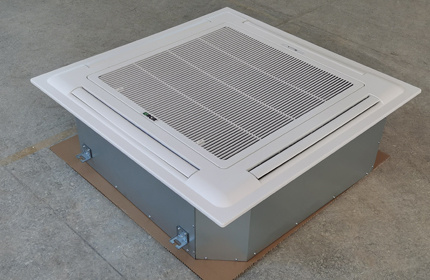

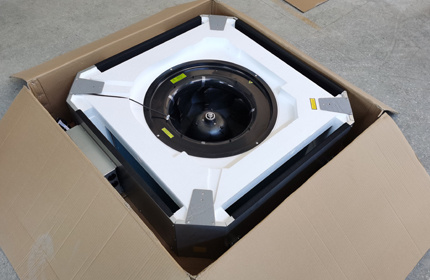

(4)Cassette ceiling fan coil, 2 pipe system, 4 way air outlet, cooling capacity 4.33/3.34/2.1KW,

Model: EST400C2, 4 way ceiling cassette fan coil, cooling capacity 3.8KW, with group wired controller

(5)Cassette ceiling fan coil, 2 pipe system, 4 way air outlet, cooling capacity 6.15/4.91/4.21KW,

Model: EST600C2, 4 way ceiling cassette fan coil, cooling capacity 5.8KW, with group wired controller
